Description

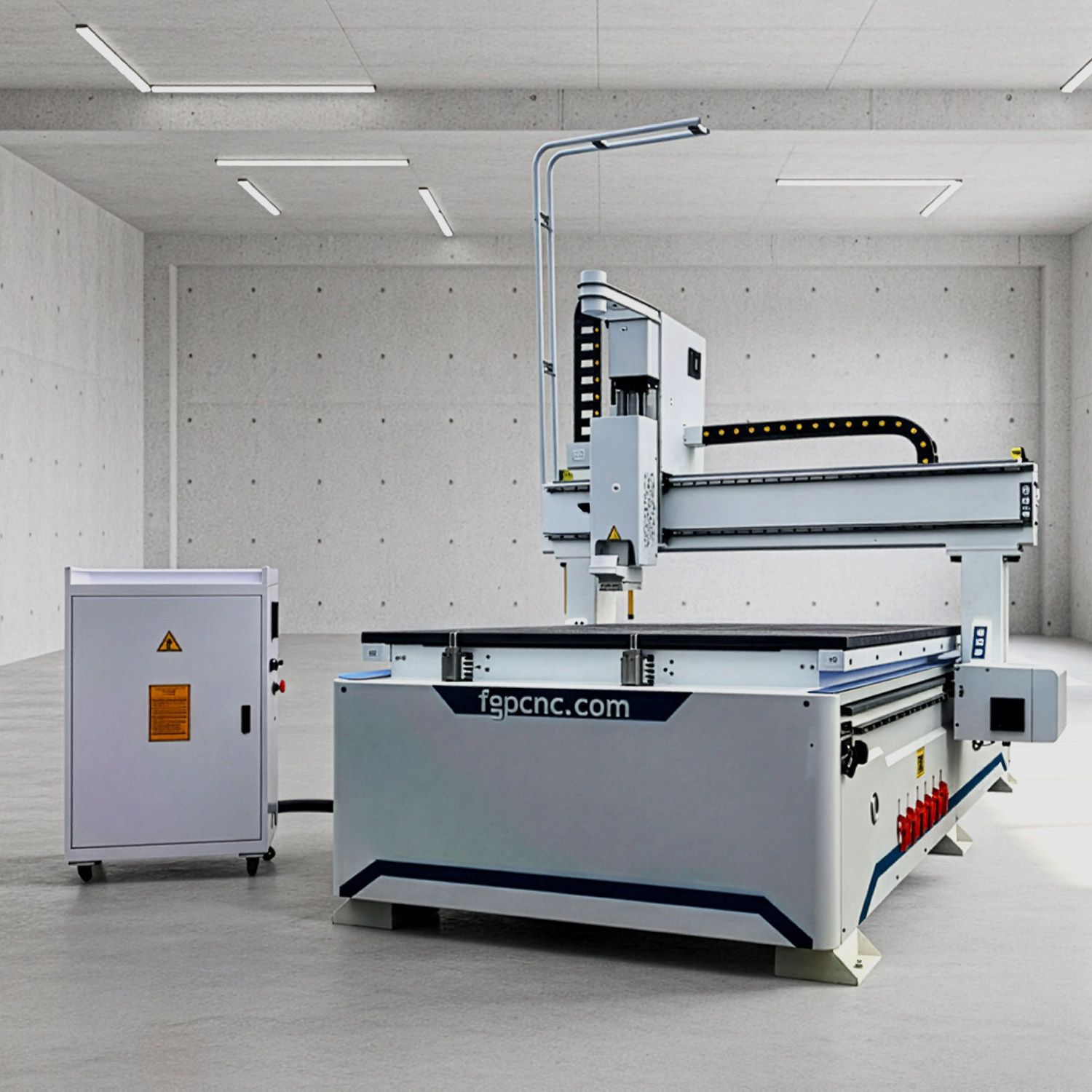

RIG Series Details

We always have a stock of CNC routers available for you. Heavy-weight, extremely powerful, and versatile, the possibilities are endless with our routers. These routers do not lose their market value, and even after many years of use, we can still trade or sell the unit for you.

Some Standard Features Include:

Steel frame construction

25mm linear rails with self-lubricating cartridge

Helical low backlash rack and pinion

Hybrid motors with an encoder feedback loop for higher accuracy

Industrial 5hp air cooled spindle head (Upgradable to 7hp, 10hp, or 12Hp)

FGP controller with graphical user interface

Vacuum tabletop with T-slot assist for clamps or jigs

Practical and well-designed dust collector head

FGP provides onsite training, support, and remote login assistance

SOFTWARE TRAINING: FGP is the ONLY company that includes FREE installation and training for all its customers. This training includes machine operation and basic CAD/CAM programming. At the end of the training, any operator can design a job, create machine code and run their CNC!

Rig Series	Specs
Table Size	4’x4’ (1300 x 1300mm) with 10″ of clearance 4’x8’ (1300 x 2500mm) with 10″ of clearance 5’x10’ (1500 x 3000mm) with 10″ of clearance
Frame	Heavy duty steel frame, heat treated and stress relieved
Spindle Motor	5HP (3.5KW) 220V manual collet Spindle. Air-cooling spindle head
Tool Changer	Non (Upgradable to ATC)
VFD Inverter	Included
Linear Motion	Taiwan HIWIN 25 mm rails for X,Y
Transmission	Taiwan Miko Helical rack and pinion for X,Y Taiwan TBI ball screw for Z Optional: All-axis ballscrew transmission system.
Motors and Drives	Hybrid / Servo motors with closed-loop feedback
Table top	Vacuum cross-hatch hard phenolic table top with T-slot assist. Separate vacuum zones
Controller	FGP control system with graphical user interface
Lubrication	Maintenance-free self-lubricating bearings
Travel	1000 IPM rapid travel
Install & training	FGP offers free installation and training on all machines! Training in software, CNC, design, CAM, and maintenance

Standard Features

Small router with a heavy frame to dampen vibration
Industrial 25mm rails and helical racks
Remote log-in support for troubleshooting
Tool sensor for material and job reference
Onscreen assistance and job simulation
Software tuning calibration
Expandable control system for custom applications
Spindle speed control via programming
Manual override of spindle speed and feed speed during runs
Maintenance-free lubrication system

Special Features

Single phase or 3 phase power connection 220 Volts and 25 Amps
Intuitive controller with graphical user interface
Secondary wireless hand-held controller, a range of up to 30 feet
High torque, high-speed motors
Self-lubricating rails and bearings
Heavy construction (Weight over 1,400 KG)
Automatic tool setting sensor
Motor calibration software

Software

Vacuum Hold Down Pumps

Unlike other CNC routers that would require huge, noisy and expansive vacuum pumps our clients can use small single phase or even 120V hold down pumps. This is due to our plumbing and zoning of the machine.

Economy option / Might require clamp assist on small parts (German made Fein pump)

This pump cost less than $700 and powerful for most applications that use large material surface. On smaller parts operator might need clamp assist.

Industrial Hold Down Vacuum Pump (USA made Hurricane pump)

This industrial-grade single-phase 220v vacuum pump is ideal for mid to large CNC table sizes from 5’x 5′ up to 5’x 8′ (or 25 ft² to 40 ft²). The integrated filtered air cooling and relief valve systems keep your Hurricane running cooler while the sound dampening base keeps the unit running quieter than other comparable systems.

~400 CFM
9.5 – 10 inHg Sealed Vacuum
3″ Threaded Steel Intake Port
Dimensions: 34″x 17.5″x 17.5″
Single Phase 220 – 240 VAC / 30 Amps
NEMA L6-30P Plug (USA and Canada Spec)
4 Long Life High Performance Vacuum Motors

Rig Accessories

Accessories Included with Each Machine

Rig Accessories+

Accessories Available to Purchase

Rig Manuals
